Forever Electromechanical: Metal Bar Induction Hardening and Tempering Production Line Empowers Intelligent Heat Treatment Manufacturing
Release Date: September 05, 2026
Traditional box-type furnace heat treatment is plagued by multiple industry pain points, including slow heating speed, severe oxidation and decarburization, uneven hardness, large workpiece deformation and high energy consumption. It can no longer meet the stringent mass tempering requirements for long metal bars in the global machinery manufacturing, construction machinery and fastener industries. To solve these industry bottlenecks, Forever Electromechanical launches the new-generation automatic metal bar induction hardening and tempering production line . Adopting core IGBT induction heating technology, the equipment realizes continuous operation of quenching, cooling and tempering, providing high-efficiency and energy-saving integrated heat treatment solutions for metal processing enterprises worldwide.
1. Integrated Production Line Structure for Continuous Automatic Operation
The entire

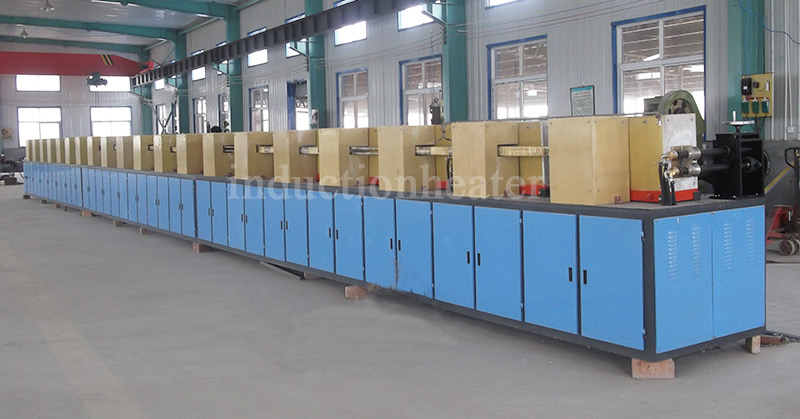

metal bar induction heat treatment system adopts a modular integrated design, consisting of eight core modules: automatic feeding mechanism, variable-frequency parallel conveying rollers, induction quenching heating unit, closed-loop spray cooling system, induction tempering heating unit, circulating water cooling system, intelligent electric control cabinet and automatic discharging mechanism.
The whole production process is fully automated. Metal bars are fed into the roller table from the feeding station, rotating and advancing at a constant speed. The bars sequentially complete induction quenching heating, spray cooling and induction tempering treatment before automatic discharging and collection. The production line requires minimal manual intervention and supports 24-hour uninterrupted mass production. It can be perfectly connected with upstream bar rolling lines and downstream sorting stations, and supports non-standard customization according to different bar diameters, materials and hourly output requirements to meet flexible production demands.
2. Core Hardware Configuration Ensures High Processing Accuracy
Equipped with full-digital IGBT induction power supply, the production line adopts
intelligent induction heating power supply systems for quenching and tempering units, with adjustable power parameters for separate process control, adapting to the processing of carbon steel, alloy steel and various metal bar materials. High-precision infrared real-time temperature monitoring modules are installed to collect workpiece temperature data throughout the process and form a closed-loop temperature-power regulation system. The temperature deviation is controlled within an extremely small range, effectively avoiding overheating and underheating, ensuring uniform and stable hardness of finished bars and greatly reducing product rejection rate.
The water-cooled parallel roller structure enables synchronous rotation of bars during operation, realizing uniform circumferential heating and effectively reducing bending and deformation. The water-cooled copper induction coil features high temperature resistance and long service life, supporting rapid parameter adjustment and model switching for different specification bars, realizing flexible multi-variety production.
3. Intelligent Control System Realizes Traceable Quality Management
The production line is equipped with a PLC human-computer interactive intelligent control system, built with rich preset process formula libraries. Quenching and tempering parameters for bars of different steel grades and specifications can be stored in advance and called with one click during production, greatly lowering the technical threshold for operators. The system automatically records all production data including temperature, running speed and power, with real-time fault alarm functions, realizing full-process heat treatment quality traceability and meeting the strict quality management standards of global overseas customers.
Compared with traditional heat treatment equipment, this intelligent production line boasts significantly improved production efficiency, extremely low oxidation loss and zero open flame and exhaust emissions. Its energy consumption is reduced by more than 30%, bringing outstanding economic and environmental benefits for industrial production.
4. Industry Application and Global Service Layout

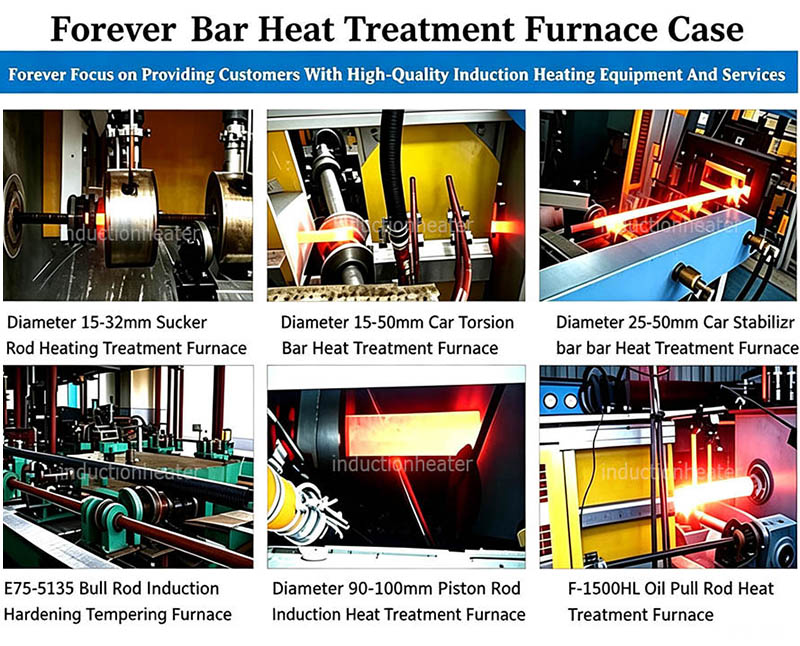

Forever Electromechanical’s metal bar induction hardening and tempering production line is widely applicable to engineering machinery shaft parts, high-strength fastener bars, hydraulic piston rods, wear-resistant alloy bars and other core workpieces. Multiple customized production lines have been successfully delivered and put into operation in domestic and overseas projects.
We provide one-stop full-cycle services including professional solution design, factory installation, on-site commissioning and long-term technical support for global customers. In the future, Forever Electromechanical will continue to iterate and upgrade induction heating core technologies, and deliver more stable, efficient and intelligent Induction heat treatment machine for the global metallurgy and forging industry.
