Medium Frequency Bar Induction Quenching Machine: Industry Development & Technical Analysis

As global machinery, new‑energy automobile and petroleum machinery industries expand, higher standards are raised for surface hardness, hardened‑layer consistency and fatigue resistance of alloy steel bars. Medium frequency bar induction quenching machine has gradually replaced traditional box‑type furnaces, becoming mainstream equipment for continuous bar heat‑treatment. Forever Electromechanical, focusing on IGBT induction heating technology, interprets current market pain points, core parameters and future development trends of bar induction quenching equipment.

1. Current Market Status & Main Industry Pain Points

The global induction quenching furnace market keeps stable growth. Bar quenching devices are widely applied in piston rods, torsion bars, high‑strength alloy bars and engineering machinery shaft blanks. Many end‑users still face obvious bottlenecks with older‑generation equipment.

First, unstable hardened‑layer depth and uneven hardness. Conventional equipment lacks rotary conveying structure. Partial over‑heating or insufficient quenching often occurs on long bars, leading to high reject rate. Second, high comprehensive energy consumption. Thyristor power units feature low power factor, heavy no‑load loss and high operating cost for mass production. Third, low automation level. Discrete equipment needs frequent manual adjustment, cannot connect seamlessly with upstream heating and downstream tempering procedures. Fourth, poor adaptability for multi‑specification mixed production. Changing bar diameter requires heavy mechanical modification and long debugging hours.

Against these industry‑wide challenges, equipment purchasers pay more attention to energy‑saving performance, closed‑loop temperature control and full‑line automatic integration, rather than only focusing on initial purchase cost.

2. Core Technical Parameters of Modern Medium Frequency Bar Induction Quenching Machine

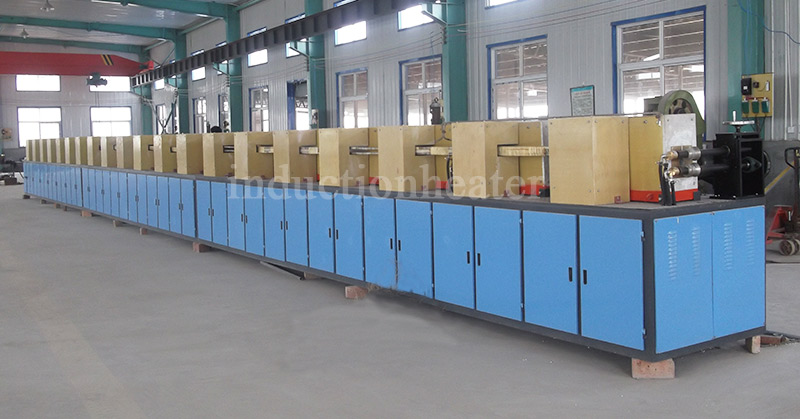

Forever Electromechanical’s optimized medium frequency bar induction quenching machine adopts full‑digital IGBT intermediate frequency power supply, matching rotary roller conveying and segmented spray quenching system. Key technical indicators are as follows:

• Applicable bar diameter: 20‑130 mm; processing length: 0.5‑12 m

• Quenching power range: 160‑1000 kW; power factor ≥0.96

• Hardened layer depth: 2‑12 mm adjustable according to steel grade

• Surface hardness: HRC 52‑64, hardness tolerance ≤±4 HRC

• Control mode: PLC + infrared real‑time temperature measurement, closed‑loop power dynamic adjustment

• Processing material: carbon steel, alloy structural steel, spring steel, bearing steel

• Running mode: 24‑hour continuous automatic feeding‑heating‑quenching output

Rotary advance design guarantees circumferentially uniform heating. Closed‑loop cooling system adjusts spray flow and pressure automatically, reducing water resource waste.

3. Core Competitive Advantages of Induction Quenching Solution

Compared with traditional resistance furnace heat treatment, steel bar induction hardening equipment shows prominent strengths.

High efficiency and energy saving. IGBT power module lifts electro‑thermal conversion efficiency above 91%. It only heats target quenching zone instead of whole furnace space. Comprehensive power consumption drops by 30%‑38%, helping factories lower carbon emission and comply with green manufacturing requirements.

Stable product quality. Real‑time temperature feedback and rotary conveying avoid local overheating. Hardened‑layer depth stays consistent for each workpiece, greatly lowering bending deformation and scrap rate.

Strong production flexibility. Quick‑change induction coil structure supports fast switching among multiple bar sizes. Parameter preset function shortens debugging cycle for mixed‑specification orders.

Intelligent unmanned operation. Integrated fault early warning, production data recording and remote monitoring functions reduce reliance on experienced operators. It can dock with upstream induction heating line and downstream tempering unit to realize one‑stop continuous heat‑treatment production.

4. Industry Development Trend & Forever Electromechanical Layout

In the coming years, medium frequency bar induction quenching industry will move toward three directions: intelligence, energy‑saving and complete‑set turn‑key solution supply. Simple single quenching machine can no longer satisfy large‑scale modern workshops. Customers prefer integrated production lines covering feeding, quenching, tempering and discharging.

Forever Electromechanical keeps iterating steel bar induction quenching equipment technology. Apart from standard models, the company provides customized solutions for special‑material bars and harsh‑condition overseas workshops. It delivers not only hardware equipment, but also complete quenching‑process formula, installation guidance and operator training service.

Facing growing demand from new‑energy equipment, mining machinery and engineering machinery sectors, Forever Electromechanical will continue optimizing IGBT medium‑frequency quenching equipment, helping global metal processing enterprises achieve high‑quality, low‑cost and eco‑friendly bar heat‑treatment production.
