Long Bar & Rod Induction Quenching and Tempering Production Line – Technical Q&A

1. What is an long bar & rod induction quenching and tempering production line?

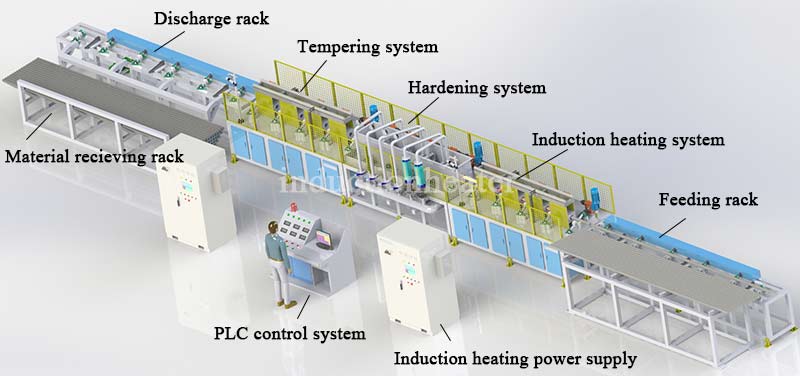

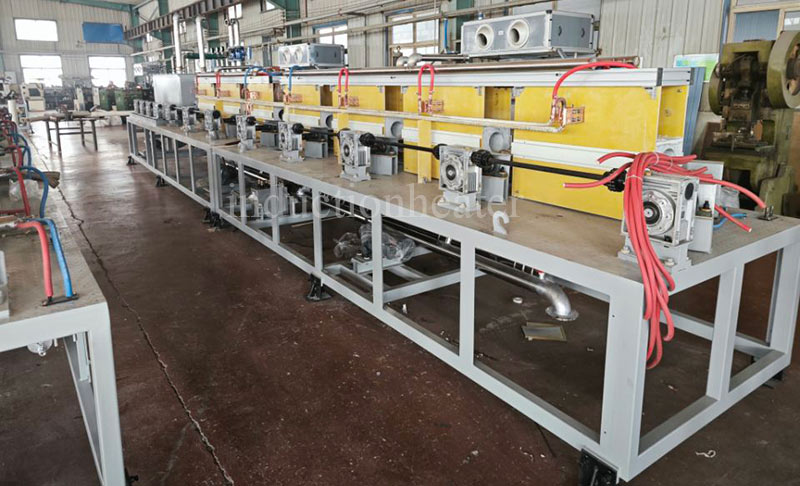

It is a continuous, high-efficiency heat treatment system designed for Φ20–150 mm, 4–12 m long steel bars/rods (alloy steel, carbon steel, 42CrMo, etc.). The line integrates induction heating, spray quenching, induction tempering, and automatic conveying into one closed-loop process, achieving uniform hardness, stable mechanical properties, and minimal distortion.

2. How does induction heating differ from traditional furnace heating?

• Fast heating: 850–920 °C in 3–8 minutes.

• Uniform temperature: Core–surface deviation ≤ ±5 °C.

• Low oxidation: Scale loss ≤ 1–2%, much lower than gas/coal furnaces.

• No decarburization: Short high-temperature time preserves surface carbon content.

•


3. What is the standard process flow?

1. Loading & straightening: Ensure straightness ≤ 1 mm/m.

2. Preheating & austenitization (850–920 °C): Multi-zone induction coils (3–5 zones) for even through-heating.

3. Spray quenching: Ring-shaped nozzles, pressure 0.2–0.4 MPa; polymer or water to form martensite.

4. Induction tempering (500–650 °C): Relieve stress, adjust hardness (e.g., 220–280 HB).

5. Slow cooling & unloading: Stabilize microstructure, avoid cracking.

4. How to control hardness uniformity along the bar?

• Rotary conveying: Bar rotates while moving, avoiding local overheating.

• Closed-loop temperature control: Infrared pyrometer + PLC, real-time power adjustment.

• End compensation: Extra nozzles at bar ends to prevent soft spots.

• Stable 等温时间（isothermal time）: Match line speed, coil length, and power distribution.

•


5. What are the typical quality advantages?

• Hardness tolerance: ±5 HB along the whole bar.

• Tensile strength: Stable, no brittle fracture risk.

• Low distortion: Straightness after treatment ≤ 2 mm/m.

• High productivity: 1–5 tons/h, 24 h continuous operation.

6. What steel grades and sizes are suitable?

• Diameter: Φ20–150 mm.

• Length: 4–12 m.

• Materials: 42CrMo, 35CrMo, 20Cr, 45# steel, alloy structural steels.

7. What are the main energy & cost benefits?

• Power consumption: 280–360 kWh/ton.

• Energy saving: 25–30% vs. resistance furnaces.

• Low maintenance: Modular coils, easy replacement.

• Labor saving: One operator can run the whole line.

•


8. Common problems & solutions

• Hardness fluctuation: Check line speed stability, pyrometer calibration, and nozzle blockage.

• Bending/distortion: Increase rotation speed, optimize quenching pressure, ensure straight feeding.

• Surface cracking: Reduce quenching speed, raise tempering temperature, check material composition.

Conclusion

Induction quenching & tempering lines for long bars deliver fast, uniform, clean, and cost-effective heat treatment. They are the preferred solution for high-quality bars used in automotive, machinery, and construction industries.
