Large Diameter Pipe Heat Treatment Furnace

Sep. 22, 2026

Large Diameter Pipe Heat Treatment Furnace: Medium Frequency Induction Heating Equipment Selection Guide

In the fields of petrochemical, thermal power, and pipeline engineering, the heat treatment of large-diameter pipes directly determines the welding quality, structural stability and service life of pipelines. Intermediate frequency induction heating equipment has become the core supporting facility of large-diameter pipe heat treatment furnaces due to its uniform heating, high efficiency and energy saving, and stable temperature control. Forever Electromechanical summarizes practical industry experience and launches a professional selection guide to help enterprises accurately match equipment and avoid matching errors and energy waste.

1. Select Equipment Based on Pipe Diameter and Wall Thickness

Pipe outer diameter and wall thickness are the primary basis for equipment selection, which directly affects power and heating depth matching. For large-diameter pipes with a diameter within 500mm, a 60kW medium frequency induction heating unit is sufficient to meet conventional stress relief and annealing heat treatment needs. For pipes with a diameter of 500-1200mm, a 100kW high-power model is recommended to ensure thorough heating and consistent internal and external temperature.

For super-large diameter thick-walled pipes above 1200mm and thick-walled pipes with wall thickness exceeding 40mm, high-power equipment above 200kW is required. It effectively solves the problem of insufficient heating penetration of thick-walled workpieces and avoids residual stress caused by uneven temperature difference between inside and outside of the pipe wall.

2. Optimize Frequency Matching for Heat Treatment Precision

Heating frequency determines the heating penetration depth and temperature uniformity of large-diameter pipes, which is a key factor affecting heat treatment quality. Following the skin effect principle of induction heating, the larger the pipe diameter and the thicker the wall, the lower the matching frequency should be.

Forever Electromechanical recommends a frequency range of 2kHz-5kHz for large-diameter pipe heat treatment. This medium frequency band can balance heating efficiency and penetration depth, realize slow and uniform heating of the pipe wall, effectively eliminate welding residual stress, and prevent pipe deformation and oxidation overheating caused by excessive high-frequency local heating.

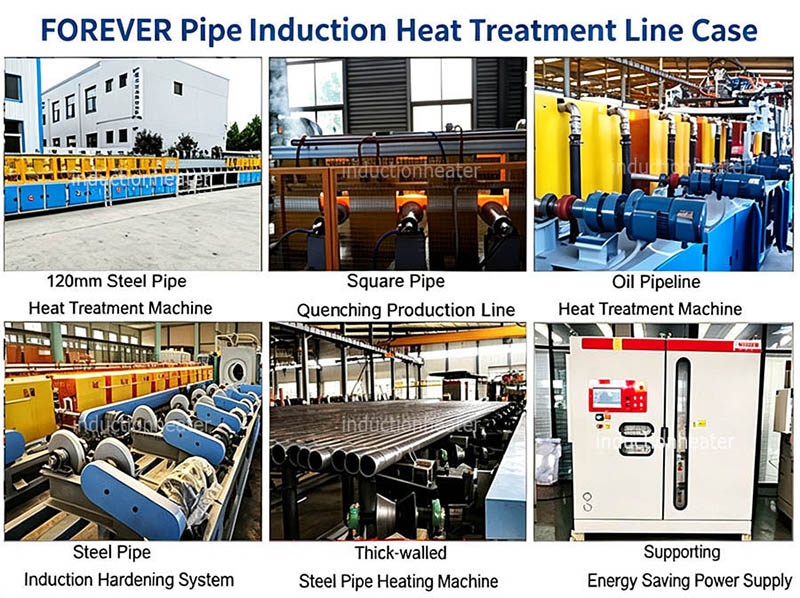

steel pipe inducton hardening and tempering process

Large Diameter Pipe Heat Treatment Furnace

3. Match Power According to Process Scenario Requirements

Different heat treatment processes have differentiated power requirements. Conventional post-weld stress relief heat treatment for large-diameter pipes adopts standard power configuration to ensure stable heating rate and accurate temperature holding. For batch continuous production and online integral heat treatment of long-distance pipelines, it is necessary to increase power configuration appropriately to improve production efficiency while ensuring process compliance.

In addition, equipment load adaptability should be considered. Professional medium frequency induction furnace needs to adapt to carbon steel, alloy steel and other multi-material pipe heat treatment, with strong load matching capability to meet the diversified processing needs of engineering projects.

4. Focus on Equipment Stability and After-sales Adaptability

Large-diameter pipe heat treatment is mostly used in heavy engineering scenarios, and equipment long-term operation stability is crucial. The selected equipment should have intelligent constant temperature control, overvoltage and overcurrent protection functions to avoid equipment failure affecting the construction period. Forever Electromechanical’s medium frequency induction heating equipment is optimized for large pipe furnace scenarios, with high thermal efficiency up to 90%-95%, energy-saving and durable, and supports customized heating coils and system schemes according to pipe parameters.

Large Diameter Pipe Heat Treatment Furnace

Summary

The scientific selection of medium frequency induction heating equipment for large-diameter pipe heat treatment furnaces needs to comprehensively consider pipe specifications, process frequency, power matching and scenario adaptability. Adhering to precise matching and customized configuration can effectively improve pipe heat treatment quality, reduce energy consumption and failure rate, and provide reliable technical support for industrial pipeline engineering construction.
