Intermediate Frequency Induction Pipe Heat Treatment Equipment: Industry Pain Points & Forever Electromechanical Solutions
As demand for high‑performance seamless steel pipes, oil casings and mechanical tubing keeps rising worldwide, intermediate‑frequency induction pipe heat treatment lines have become core production facilities for pipe manufacturers. Nevertheless, many factories still struggle with persistent technical and operational bottlenecks inherited from conventional heat‑treatment systems, which lower finished‑product yield, raise power expenses and restrict stable mass production.

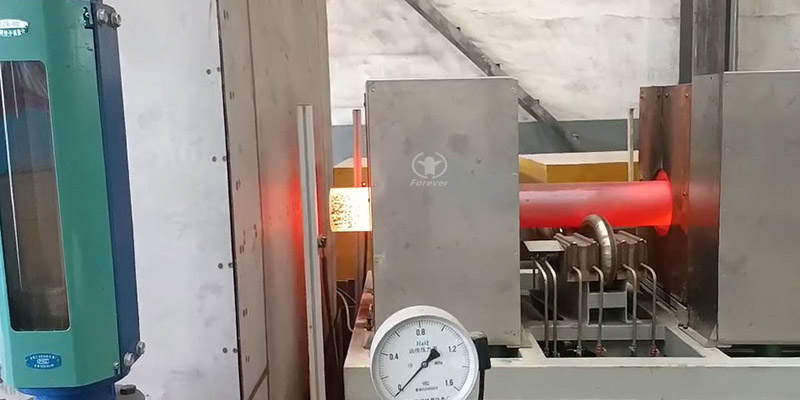

Intermediate frequency induction pipe heat treatment equipment
The first major industry pain point is inconsistent heating quality. Many older production lines adopt fixed‑structure induction coils and open‑loop control systems. Uneven magnetic‑field distribution creates circumferential and wall‑thickness temperature deviation. Consequently, treated pipes suffer uneven hardness, local soft spots, excessive residual stress, bending or deformation after quenching and tempering. For thick‑wall and large‑diameter pipes, hardness deviation may exceed 15 HRC, generating large batches of rejected workpieces and heavy economic losses. Severe surface oxidation and decarburization also appear due to improper heating‑holding time, ruining pipe surface finish and anti‑corrosion performance.
Second, high energy consumption and poor power‑matching performance trouble numerous end‑users. Conventional intermediate‑frequency power supplies often suffer impedance mismatch between power units and induction coils, resulting in low power‑factor, large reactive‑power loss and high unit power consumption. Under long‑time continuous‑load operation, unstable power output causes frequent parameter drift, and vulnerable components wear rapidly, increasing daily maintenance costs and unplanned downtime.
pipe heat treatment machine
Third, low automation and heavy dependence on skilled operators. Traditional equipment lacks real‑time temperature feedback and automatic parameter‑tuning functions. Workers must manually adjust power, feeding speed and cooling flow frequently according to pipe specifications. Batch quality fluctuates easily, production capacity cannot be fully released, and enterprises face recruitment pressure for experienced heat‑treatment technicians. In many overseas projects, insufficient after‑sales technical support further delays on‑site commissioning and fault repair.
To tackle these universal challenges, Forever Electromechanical has developed optimized intermediate‑frequency induction pipe heat‑treatment solutions based on abundant global project experience.
For uneven heating and pipe deformation, Forever supplies high‑precision integral forming induction coils matched with servo synchronous feeding and rotary conveying mechanism. The 360‑degree annular uniform‑spray cooling system guarantees circumferentially consistent quenching. Equipped with multi‑channel infrared temperature‑measurement modules and PLC closed‑loop control, the system dynamically adjusts power and running speed in real‑time, controlling temperature deviation within a narrow range, minimizing pipe deformation and improving product qualification rate remarkably. Short high‑temperature residence time effectively restrains oxidation and decarburization, keeping smooth pipe surface.
In terms of energy‑saving and stable power performance, Forever adopts mature digital IGBT induction heating power supply. Professional resonance‑parameter calibration optimizes impedance matching between power supply and coils, lifting power factor above 0.95 and cutting comprehensive energy consumption by over 30% compared with outdated equipment. Heavy‑duty design supports 24‑hour non‑stop industrial operation with low failure rate.
For intelligent operation and service guarantee, the full‑automatic production line realizes one‑man operation. Different pipe diameter and wall‑thickness parameters can be stored as process recipes for one‑click calling, lowering requirements for operator skills. Forever delivers one‑stop services including process simulation, factory layout design, on‑site installation & commissioning, personnel training, 12‑month full‑machine warranty and lifelong remote technical support, helping global pipe manufacturers achieve stable, high‑yield and low‑cost heat‑treatment production.
