How Rebar Induction Heating Equipment Works for Steel Rebar Processing

Introduction

Rebar is a core structural material for infrastructure, and stable, consistent preheating directly decides rolling quality, mechanical performance and finished yield. As gas-fired furnaces face stricter emission limits and unstable temperature deviation, induction heating has become the preferred upgrade for modern rebar rolling plants. Forever Electromechanical’s continuous rebar Induction heating equipment is built on mature IGBT medium-frequency power technology, designed to serve threaded bar hot rolling, quenching and tempering workflows. This article breaks down its working logic, process layout, control system and practical advantages for steel rebar manufacturers worldwide.

The Basic Induction Heating Principle

The whole system follows Faraday’s electromagnetic induction law and Joule heating theory. The self-developed IGBT induction heating power supply cabinet converts industrial AC power into adjustable medium-frequency alternating current, which flows through water-cooled copper induction coils. The coil generates a rapidly alternating magnetic field. When cold rebar passes through this magnetic field, closed eddy currents form inside the steel. Driven by steel’s inherent electrical resistance, eddy currents turn electric energy into heat directly within the rebar, rather than relying on external flame or radiation heating. This non-contact internal heating method avoids long heat conduction delays and delivers fast temperature rise. Forever engineers tune output frequency according to rebar diameter, balancing skin effect and through-heating to narrow radial temperature gaps between surface and core.

Step-by-Step Continuous Production Workflow

Forever’s rebar heating line adopts segmented modular layout, matching continuous rolling rhythm. First, automatic feeding rollers send rebar into the preheating zone. Low-power gradual heating reduces thermal shock, preventing cracking caused by sharp temperature jumps. Next, the main heating section raises the workpiece precisely to target rolling temperature. Multi-point infrared pyrometers are installed along the furnace tunnel to capture real-time temperature data. If readings drift, the PLC closed-loop system instantly adjusts power output and conveying speed. After heating, rebar is delivered straight to the rolling mill through insulated guide rollers, maintaining stable entry temperature for rolling. For heat-treatment-grade rebar, an optional quenching and tempering station can be connected downstream for online hardness adjustment.

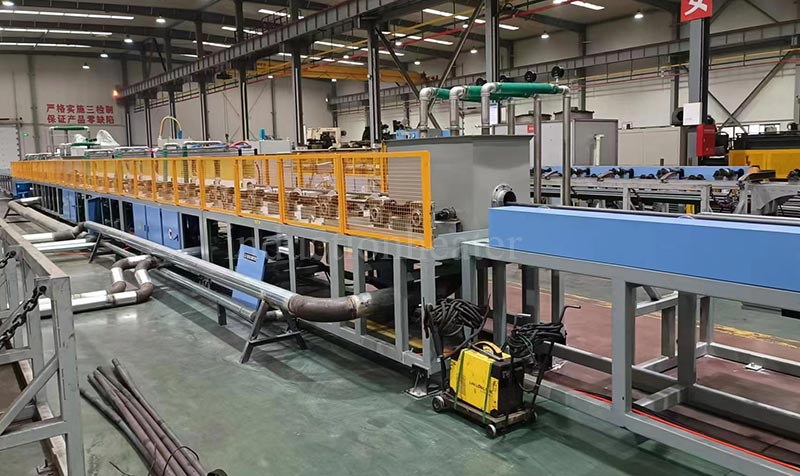

rebar induction heat treatment furnace

Digital Closed-Loop Control and Core Hardware

Reliable power supply is the heart of stable operation. Forever’s energy-efficient series IGBT energy efficient induction power supply supports soft start, over-current, over-voltage and water shortage protection. Operators set target temperature, line speed and production parameters on the HMI touchscreen. All heating zones work independently yet synchronously. The segmented coil design solves a common industry pain point: uneven head-to-tail temperature of long rebar. Water cooling for coils and power modules keeps long-running stability under heavy load, which is critical for 24-hour continuous mill operation. Modular assembly also simplifies shipping, on-site installation and component replacement for overseas clients.

Key Benefits Against Traditional Gas Furnaces

Compared with gas reheating furnaces, Forever rebar hardening and tempering machine brings clear production gains. It starts instantly with no lengthy preheating standby time. Oxide scale loss drops sharply, normally controlled below 0.5%, lifting finished product yield and cutting raw material waste. Without open flame combustion, NOₓ and particulate emissions are eliminated, helping factories meet green manufacturing standards. Energy efficiency is markedly higher; heat concentrates only on the rebar instead of heating surrounding air and refractory bricks. Temperature accuracy reaches ±5℃, reducing rolling defects such as uneven rib formation, dimensional deviation and bending. The compact footprint fits limited workshop space and connects seamlessly with existing rolling lines.

Application and Global Service from Forever Electromechanical

This induction heating solution covers carbon rebar, alloy threaded bar and deformed steel bars of multiple specifications. Forever Electromechanical has delivered rebar heating and heat-treatment lines to clients across Southeast Asia, the Middle East, Russia and Türkiye. Local commissioning, operator training and spare-parts support are included in turnkey projects. As rebar quality standards keep tightening globally, controllable, repeatable thermal processing becomes a competitive edge.

Conclusion

Rebar induction heating is not merely a heating alternative; it is a digital thermal control system that links power, magnetic field, temperature detection and rolling rhythm. By mastering eddy-current heating logic and segmented closed-loop adjustment, Forever Electromechanical helps steel producers balance productivity, product consistency and low-carbon targets. For rebar mills pursuing stable hot rolling and reliable heat treatment, well-engineered induction heating lines represent a forward-looking upgrade path for long steel processing.
