Optimized Modulation Scheme of Steel Pipe Induction Heating Furnace Empowers High-Quality Pipe Heat Treatment
With the rapid upgrading of petroleum, chemical and pipeline engineering industries, high-standard seamless and welded steel pipes have put forward higher requirements for heat treatment uniformity, mechanical stability and production efficiency. The traditional resistance heating furnace suffers from slow temperature rise, serious energy consumption and uneven metallographic structure, which restricts the quality improvement of high-end pipe products. Recently, the newly upgraded intelligent modulation scheme of pipe induction heat treatment machine has been officially put into industrial application, bringing comprehensive optimization in precision heating, stress elimination and energy-saving production for steel pipe quenching and tempering processing.
Different from conventional heating equipment relying on thermal radiation, the
induction heating machine adopts electromagnetic induction eddy current heating principle. The core of the new modulation scheme lies in the optimized linkage of frequency conversion power regulation, segmented temperature control and intelligent closed-loop calibration. Aiming at steel pipes of different diameters, wall thicknesses and steel grades including 40Cr, 20# and alloy steel, the system realizes dynamic matching of heating frequency and power. It effectively solves the common industry problems such as surface overheating, insufficient core heating and inconsistent hardness caused by fixed parameter heating.
The scheme innovates staged heating modulation logic to adapt to the whole-process quenching and tempering technology. In the rapid heating stage, medium-frequency pulse power output is adopted to quickly raise the steel pipe temperature to the austenitizing interval, shortening heating time by 40% compared with traditional processes and avoiding coarse grain growth due to long-term high-temperature baking. In the constant-temperature soaking stage, the system links infrared high-precision temperature measuring instruments and PLC control modules to lock the temperature fluctuation within ±3℃, ensuring uniform phase transformation inside and outside the steel pipe wall.

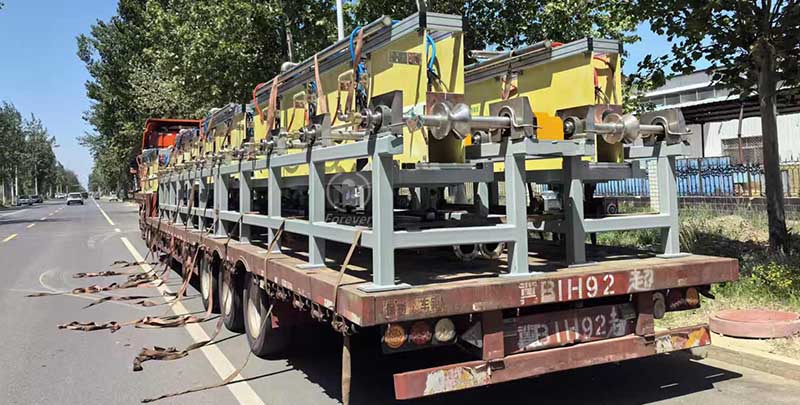

medium frequency induction furnace
For the low-temperature tempering modulation link, the scheme sets a gradient heating program with a stable heating rate of 5–8℃ per minute. It effectively releases the internal stress generated during pipe rolling and quenching, avoiding deformation and cracking of finished pipes. Meanwhile, the optimized inductor coil structure eliminates edge heating effects, realizing uniform heating of the whole pipe body and greatly improving the one-time qualification rate of product hardness, toughness and dimensional accuracy.
In terms of production and energy efficiency, the new modulation scheme delivers outstanding advantages. The induction heating method features concentrated heat energy and no redundant heat loss, reducing comprehensive energy consumption by nearly 30%. The fully automatic parameter modulation system realizes one-click switching of process parameters for different pipe specifications, reducing manual debugging errors and improving continuous production efficiency. All heating and tempering data can be recorded in real time, realizing traceable quality management and meeting the strict inspection standards of API and national pipeline engineering.
Industry insiders said that the optimized modulation scheme of steel pipe induction heating furnace fills the technical gap of refined heat treatment for multi-specification steel pipes. It not only improves the comprehensive mechanical properties and service life of pipe products, but also helps pipe manufacturing enterprises realize high-efficiency, low-carbon and intelligent production, providing solid technical support for the upgrading of high-end steel pipe manufacturing industry.
