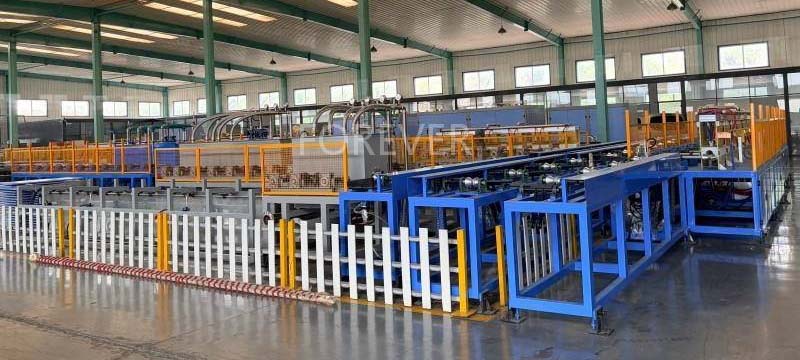

Grinding Rod Induction Heat Treatment Furnace: Deep Analysis of Core Industry Pain Points & Technical Breakthroughs
With the rapid expansion of mining, cement, thermal power and mineral processing industries, the market demand for high-performance grinding rods keeps rising year by year. Heat treatment is the core process that determines the wear resistance, toughness and service life of grinding rods. At present, most grinding rod manufacturers still face multiple bottlenecks in traditional heat treatment equipment and processes, which severely restrict product quality stability, production efficiency and comprehensive operation cost control. The whole industry is calling for targeted optimized Induction heat treatment machine solutions for grinding rods.
1. Uneven heating leads to inconsistent mechanical properties and high scrap rate
Traditional general induction heating equipment lacks customized coil design for long-length grinding rods (8–120mm diameter, 1–6m length). Single-section induction coils only heat the surface of steel rods, forming a huge temperature difference between surface and core. After quenching & tempering, the hardness deviation of a single grinding rod exceeds ±5HRC, and batch hardness fluctuation reaches ±8HRC. Partial rods have insufficient core toughness, prone to bending, end breakage and mid-bar fracture during mill operation; over-hardened sections bring severe brittle failure, shortening service life by 30%–50%.
Most old furnaces adopt single-point temperature detection, unable to monitor temperature changes along the full length of grinding rods. Deviations in feeding speed, coil clearance and power output will cause local overheating or underheating, resulting in unqualified metallographic structure, excessive surface decarburization and thick oxide scales. Manufacturers suffer heavy losses from rework and waste materials, and cannot meet the high-standard procurement requirements of large mineral processing groups.

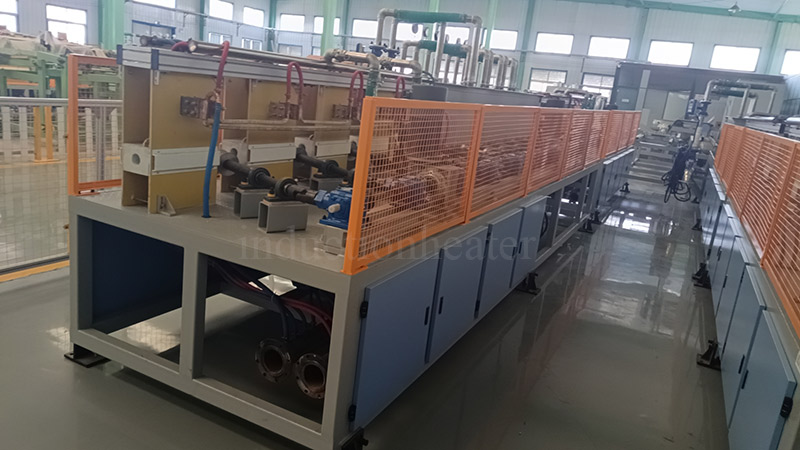

grinding bar induction hardening and tempering machine
2. High energy consumption & low production capacity, increasing long-term production costs
Gas furnaces, resistance furnaces and early single-stage induction lines widely used in the industry have prominent energy waste defects. Flame heating relies on external heat conduction, requiring long preheating and continuous heat preservation during shutdown, with overall thermal efficiency lower than 42%. Conventional induction equipment lacks dynamic power matching modules; power remains constant regardless of grinding rod specifications, leading to invalid power loss. Statistics show that outdated heat treatment lines consume over 600 kWh per ton of grinding rods, while advanced customized induction furnaces can cut power consumption to 420–480 kWh/t, forming a huge cost gap in mass production.
In terms of output, old equipment supports only 0.5–1.2 tons per hour, unable to match the continuous rolling production rhythm of steel mills. Long waiting queues before heating cause steel rod temperature drop, secondary temperature difference and repeated heating, further amplifying energy loss and delaying delivery cycles. Many medium and small grinding rod factories are trapped in the dilemma of low output and high electricity bills.
Grinding rods are slender long workpieces, extremely sensitive to thermal stress during heating and cooling. Ordinary induction furnaces use single-roller feeding, with unstable rotation and uneven circumferential heating. Thermal stress concentration causes overall bending after quenching, with straightness error up to 0.3%. Factories have to add independent straightening processes, deploying extra workers and equipment, increasing labor and equipment investment. Worse still, forced cold straightening introduces new internal residual stress, which triggers delayed breakage of grinding rods in service, triggering customer complaints and after-sales compensation risks.
4. Low intelligence & high reliance on manual operation, unstable batch consistency
Most traditional heat treatment furnaces are equipped with simple analog control systems, without standardized parameter databases for different steel grades (medium carbon steel, alloy wear-resistant steel, high carbon grinding rod steel). Operators adjust power, speed and temperature manually based on experience, and parameter deviation occurs easily during shift handover, resulting in inconsistent quality between morning and evening batches.
The equipment lacks real-time remote monitoring, automatic fault alarm and data recording functions. Abnormal coil temperature, cooling water pressure fluctuation and power overload cannot be discovered in time, leading to mass defective products. In addition, non-closed cooling water circulation systems cause water resource waste and environmental compliance hidden dangers; open heating sections generate a large amount of oxide dust, failing to meet the green factory emission standards in mining equipment manufacturing zones.
5. Universal furnace design fails to match multi-specification flexible production
Grinding rod manufacturers need to switch production between Φ8–Φ120mm specifications frequently. Ordinary induction heat treatment furnaces adopt fixed coil and single-speed feeding structures. Replacing specifications requires disassembly of coils, readjustment of power and cooling parameters, with 2–3 hours of downtime for each switch, seriously reducing equipment utilization rate. Low universality of equipment forces enterprises to purchase multiple sets of furnaces to cover full-size products, greatly raising one-time investment and workshop space occupation costs.

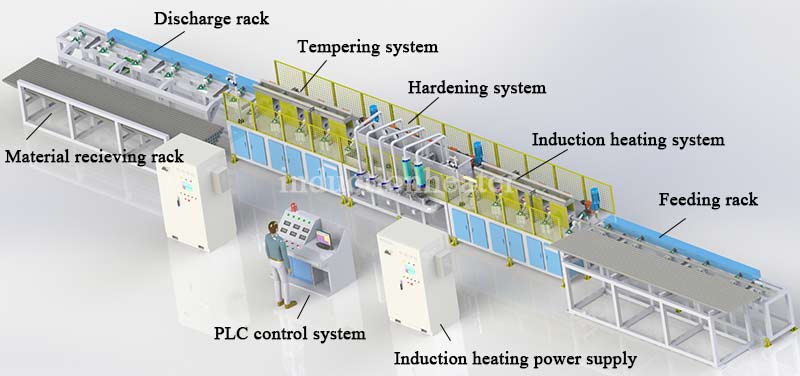

Aiming at the above universal pain points, professional grinding rod dedicated induction heat treatment furnaces adopt segmented multi-frequency induction coil design, full-length multi-point infrared closed-loop temperature control, dual-rotary automatic feeding, intelligent PLC parameter library and closed circulation cooling system. The equipment realizes internal-external synchronous uniform heating, hardness fluctuation controlled within ±2HRC, straightness error below 0.15%, hourly output up to 3.5 tons, power saving over 30% compared with traditional lines, and fully automatic operation with minimal manual intervention. It solves the core contradictions of unstable quality, high energy consumption, low efficiency and difficult flexible production in the grinding rod heat treatment industry, becoming the mainstream upgrading equipment for mineral processing wear-resistant material manufacturers globally.
