Continuous Bar Quenching and Tempering Line: Forever Electromechanical’s Induction Heat Treatment Solution

Introduction

Against the backdrop of global metal processing upgrading, steel bar manufacturers face growing demands for stable mechanical properties, low energy consumption and automated production. Traditional chamber furnaces suffer from slow heating, serious decarburization, uneven hardness and high power cost, restricting mass production of high-strength round bars. To solve these industry pain points, Forever Electromechanical has developed the continuous bar quenching and tempering line, adopting advanced IGBT induction heating technology to realize integrated quenching, spray cooling and tempering in one continuous workflow. This modular production system delivers reliable heat treatment solutions for mining, engineering machinery, fastener and steel ball forging enterprises worldwide.

Core Composition of the Continuous Production Line

The steel bar induction heat treatment equipment and process consists of several key functional modules: automatic feeding roller table, induction quenching heating unit, closed-loop spray cooling system, induction tempering furnace, circulating water cooling station, intelligent power supply and PLC control cabinet. After raw steel bars are fed into the roller conveyor, they pass through quenching heating, rapid spray cooling and tempering heating sequentially without repeated loading and unloading. The whole production runs continuously. The line can handle round bars ranging from 20 mm to 120 mm in diameter, with adjustable line speed to match different steel grades and technical requirements. Modular structure simplifies installation, on-site commissioning and later maintenance, and quick coil replacement supports fast switching among multiple workpiece specifications.

Technical Strengths: Stable Quality & Energy Saving

Induction heating directly heats the workpiece internally, greatly shortening heating cycles compared with traditional furnace treatment. The thermal conversion efficiency exceeds 92%, cutting unit power consumption by nearly 35%. Equipped with multi-point infrared temperature measurement and closed-loop intelligent control, the system monitors temperature, conveying speed and power in real time. It effectively controls hardness fluctuation, reduces bending deformation and minimizes surface oxidation and decarburization. Finished bars achieve balanced tensile strength and impact toughness, avoiding common defects such as inconsistent hardness and local overheating. The closed spray cooling system reduces oxide scale, keeping clean surface quality for finished bars. No open flame or waste gas emission makes the line comply with international low-carbon and environmental standards.

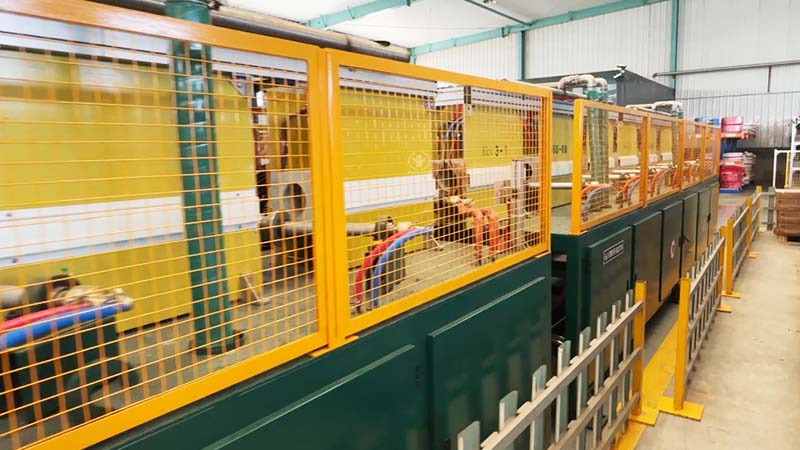

steel bar quenching and tempering machine

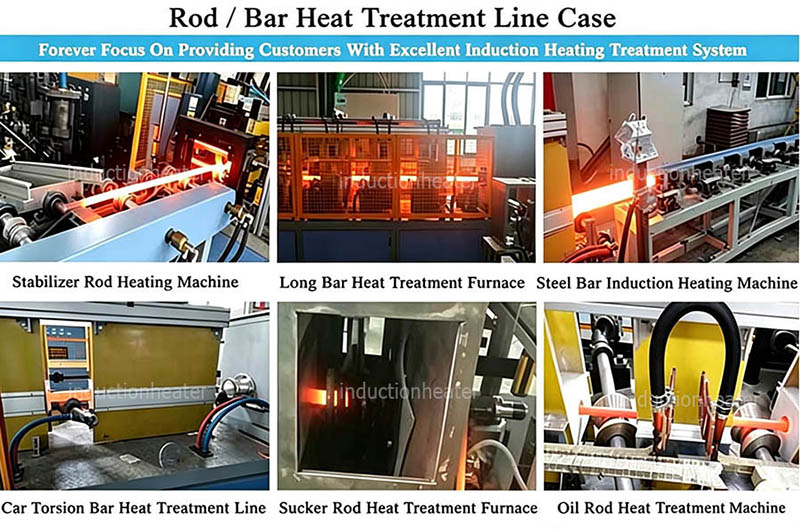

Global Project Delivery & Overseas Cases

Forever Electromechanical’s Induction heat treatment machine has been exported to Iran, Serbia, Argentina and many other overseas markets. The continuous bar quenching and tempering line has won recognition from international metal processing manufacturers. Many overseas clients adopt this line to supply qualified hot bar blanks for steel ball forging production. The full-process automatic design lowers labor dependence and reduces human error. All operational data including temperature, power and running speed can be automatically recorded for full quality traceability, satisfying strict inspection standards of global buyers. Our technical team provides overseas on-site installation, commissioning and long-term after-sales service to guarantee stable long-term operation of production lines in different countries.

Application & Customization Service

This continuous bar quenching and tempering line serves multiple application scenarios: raw material pretreatment for forged steel balls, heat treatment for structural round steel, anchor bolts and hydraulic piston rods. Forever Electromechanical provides non-standard customized design according to clients’ workpiece size, hourly output and factory layout. Whether customers need independent quenching and tempering equipment or a complete production line matched with steel ball rolling mills and billet heating furnaces, our engineering team can build a tailored solution.

Conclusion

As global metal manufacturing pursues intelligence and green production, continuous induction quenching and tempering technology becomes a preferred upgrade route for bar heat treatment. Forever Electromechanical keeps optimizing induction power supply and heating coil design, helping overseas clients improve finished product rate, cut energy cost and raise market competitiveness. For manufacturers seeking reliable continuous

bar quenching and tempering lines, welcome to contact us for technical consultation and project quotation.
