Bar & Rod Hardening Tempering Furnace Production Line: Technical Features from Forever Electromechanical

Forever Electromechanical, a seasoned manufacturer specializing in medium frequency induction furnace, releases its upgraded continuous bar & rod hardening and tempering furnace production line. Built on decades of R&D experience, this integrated line targets the heat treatment of carbon steel, alloy steel round bars and long rods, widely used in engineering machinery, automotive parts, oil & gas and construction industries. It addresses the pain points of traditional batch furnaces, such as low efficiency, poor hardness consistency, heavy oxidation and high energy consumption, bringing stable, automated and low-carbon heat treatment solutions to global metal processing manufacturers.

1. Advanced IGBT Induction Power System for Efficient & Uniform Heating

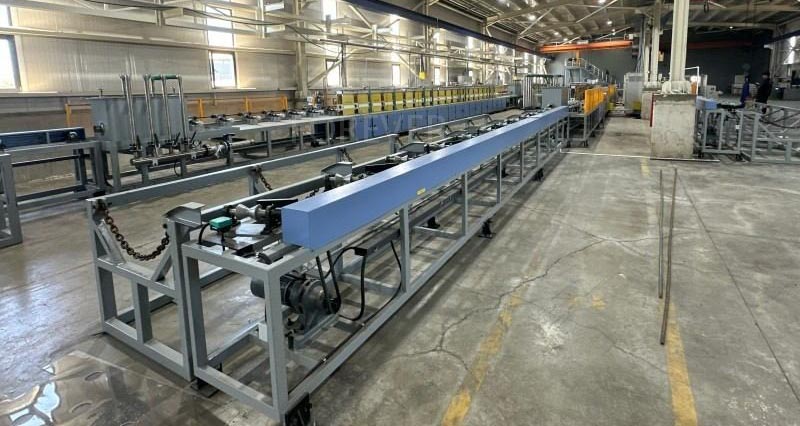

The production line adopts segmented digital IGBT induction heating power supply. Independent power units are configured separately for hardening heating and tempering heating, supporting flexible power adjustment according to bar diameters and steel grades. Induction heating rapidly penetrates the workpiece, different from slow radiant heating of traditional furnaces. The skewed rotating roller conveyor drives bars to rotate while moving forward, achieving circumferentially uniform heating. It avoids local overheating or underheating. The electrothermal conversion efficiency reaches over 92%, cutting power consumption by nearly 35% compared with resistance furnaces, with obvious energy-saving benefits.

2. Closed-loop Infrared Temperature Control Guarantees Stable Metallurgical Quality

Real-time infrared pyrometers are installed in hardening zone, quenching zone and tempering zone, forming a full-process closed-loop temperature control system. The temperature deviation is strictly controlled within ±5℃. The annular segmented spray quenching unit adjusts cooling pressure and flow via PLC, accurately controlling martensite transformation. After tempering, bars obtain balanced hardness, tensile strength and impact toughness. Hardness uniformity can be kept within ±10 HB along the whole length. Surface decarburization and oxidation are greatly reduced, and bending deformation is minimized, lowering the reject rate significantly.

3. Intelligent PLC Control System with Full-process Traceability

Equipped with industrial PLC and touch-screen HMI, the system stores dozens of preset heat treatment recipes for different material grades and bar specifications. Operators can switch parameters with one click when changing workpieces, shortening product changeover time. The whole workflow from feeding, induction hardening, spray quenching, induction tempering to final cooling and discharging runs automatically. All production data including temperature, line speed and power are automatically recorded and stored. Historical records can be exported for quality traceability, meeting strict quality management requirements for high-end mechanical parts. Multi-protection functions including over-current, over-voltage, water shortage and over-temperature ensure safe 24-hour continuous operation.

4. Modular Structure for Flexible Customization & Easy Maintenance

Forever Electromechanical adopts modular design for the furnace line. The induction coil, power cabinet, roller conveyor and cooling system are independent modules. It supports customized layout according to clients’ workshop space and output demand, handling bars from Φ20mm to Φ150mm. The quick-change induction coil design reduces equipment downtime during specification replacement. Water-cooled copper coils and wear-resistant stainless steel rollers extend service life. Key components are easy to inspect and maintain, reducing long-term operation and maintenance costs for end users.

5. Environmentally Friendly Continuous Production with Wide Application

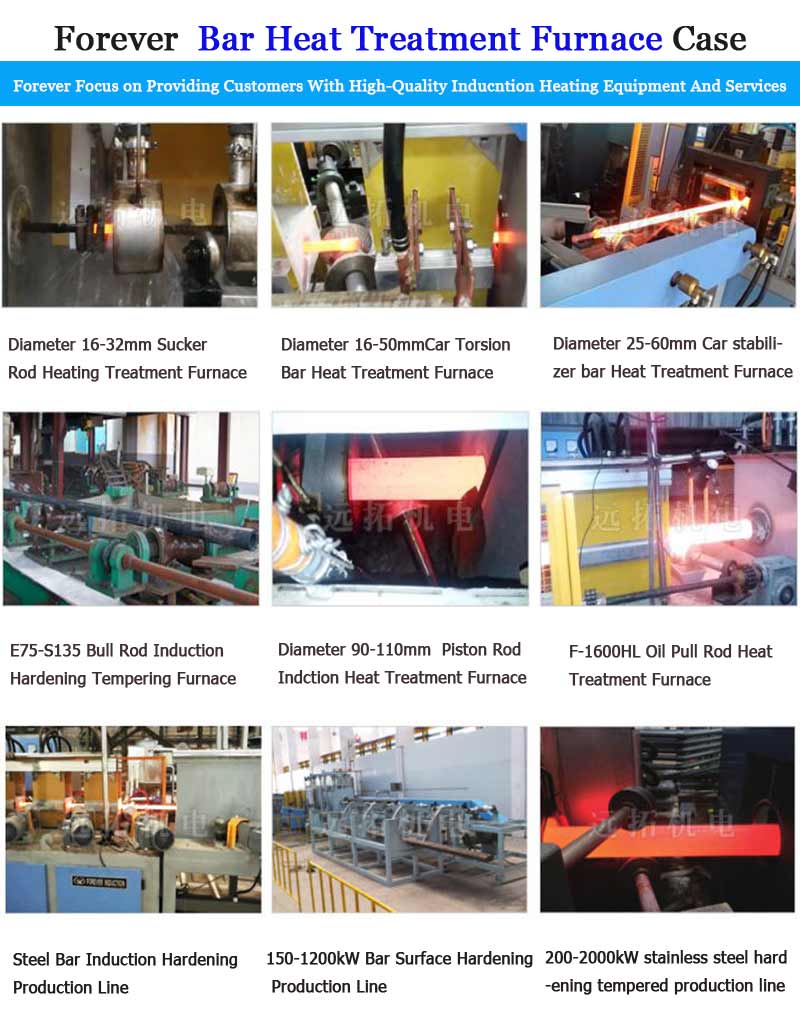

This continuous bar & rod hardening tempering furnace line has no open flame combustion. The closed circulating cooling system generates little oxide scale and flue gas, complying with global environmental standards. It can process alloy steel bars, piston rod blanks, bolt raw materials and mechanical structural rods. Forever Electromechanical provides one-stop services including scheme design, manufacturing, on-site installation, commissioning and after-sales training. The new line has been delivered to multiple clients across Southeast Asia, Europe and the Middle East, helping metal enterprises upgrade heat treatment capacity and produce high-performance bar and rod products.
