Steel Pipe Online Weld Annealing Furnace

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. specializes in the research and production of induction heating equipment, which is used in the steel pipe heat treatment and heating industry. The steel pipe online weld annealing equipment is developed and produced in combination with advanced technologies at home and abroad, taking a high-tech development and production path, and adhering to a market-oriented approach. We specialize in providing customers with induction heating technology solutions, as well as pricing and services for steel pipe online weld annealing equipment. Forever's steel pipe online weld annealing equipment is energy-saving, environmentally friendly, and efficient in production.

Feature:

Product Name: Steel Pipe Online Weld Annealing Equipment

Workpiece material: Q195、Q235、10、20、35、45、304, 316、20Cr、40Cr、20CrMo、35CrMo、42CrMo、40CrNIMO、GCr15、65 Mn、50Mn、50Cr、3Cr2W8V、20CrMnTi、5CrMnMo Wait.

Workpiece diameter range: 10mm to 500mm in diameter

Workpiece length range: greater than 2m

Intelligent intermediate frequency power supply series: KGPS160KW-8000kW

Power consumption: calculated based on the customer's workpiece material and diameter, heating temperature, operating speed, etc.

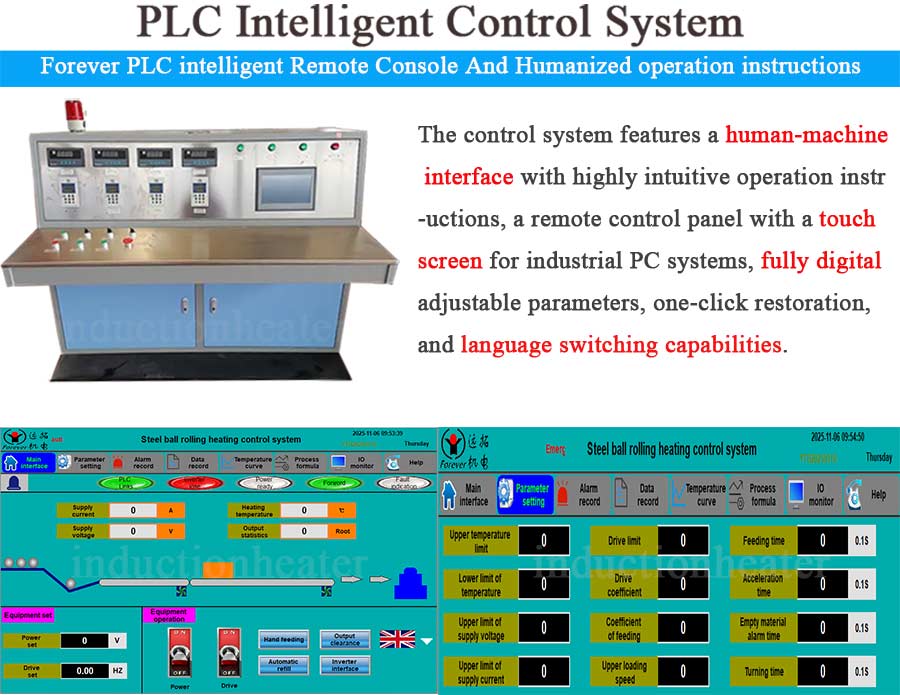

Forever Electromechanical Steel Pipe Online Weld Annealing Equipment has high reliability, strong stability, and sensitive protection. The steel pipe online weld annealing equipment adopts PLC control system, and can choose touch screen or industrial computer control system according to customer needs. The Siemens PLC independent control panel can provide full process control for the entire mechanical action and annealing. The steel pipe online weld annealing equipment system is easy to operate, efficient, and uniformly heated. Professional human-machine interface, fully digital, high-depth adjustable parameters, powerful formula management system. After selecting the workpiece and type parameters to be produced, the relevant parameters are automatically called without manually recording, querying, or inputting the required parameter values for various workpieces.

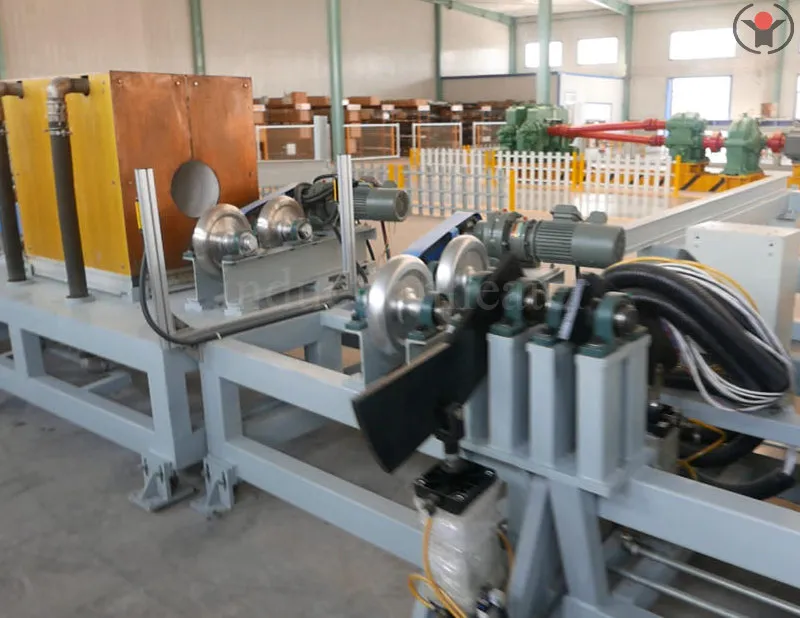

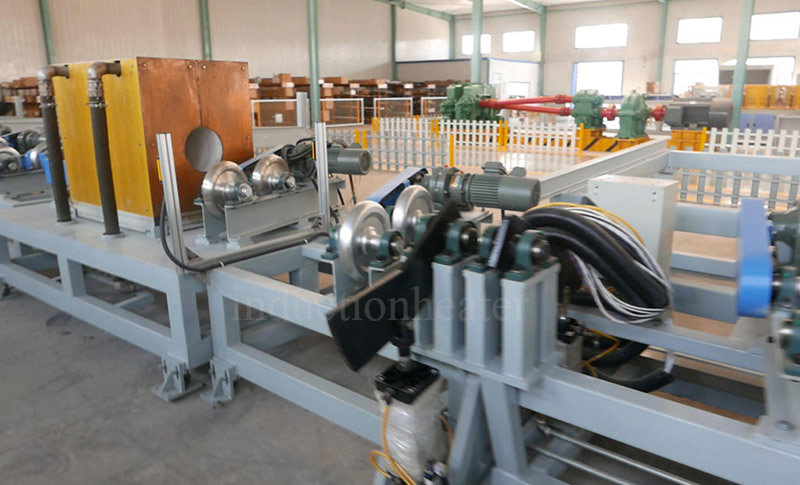

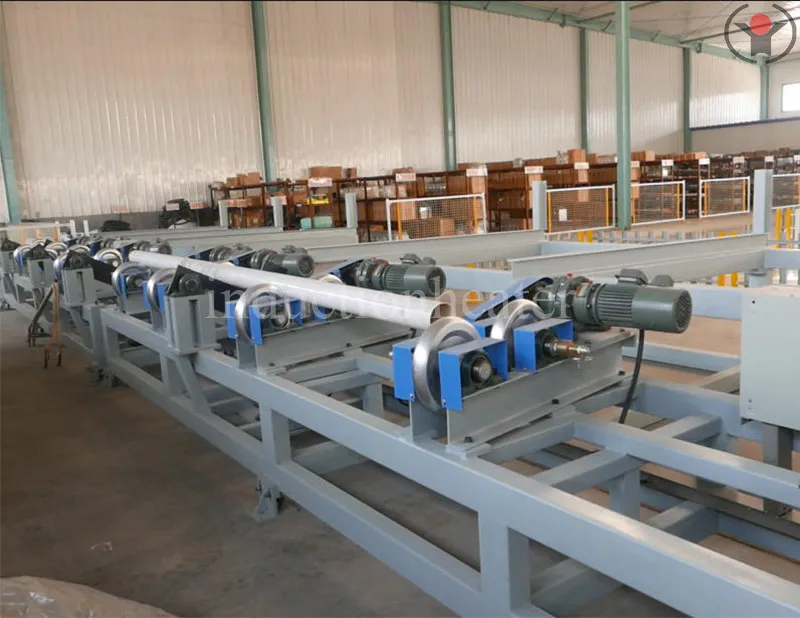

The online weld annealing equipment for steel pipes is designed for users. The heating sensor of the intermediate frequency annealing furnace adopts a quick change structure, which is convenient for maintenance and replacement. The conveying roller adopts 304 stainless steel hollow water-cooled rotating roller, which will not cause bearing overheating and damage during induction heating, ensuring its long-term stable operation. The feeding method of the induction annealing system adopts inclined roller self rotating feeding, which infinitely ensures the uniformity of heating. The entire process is fully automated and intelligent, saving labor.

If you are also interested in this machine,please don't hesitate to contact us:

Overseas manager: Tom Wang

Email:tom@foreverfurnace.com

Phone/Wechat/Whatsapp:+86 13303078975
