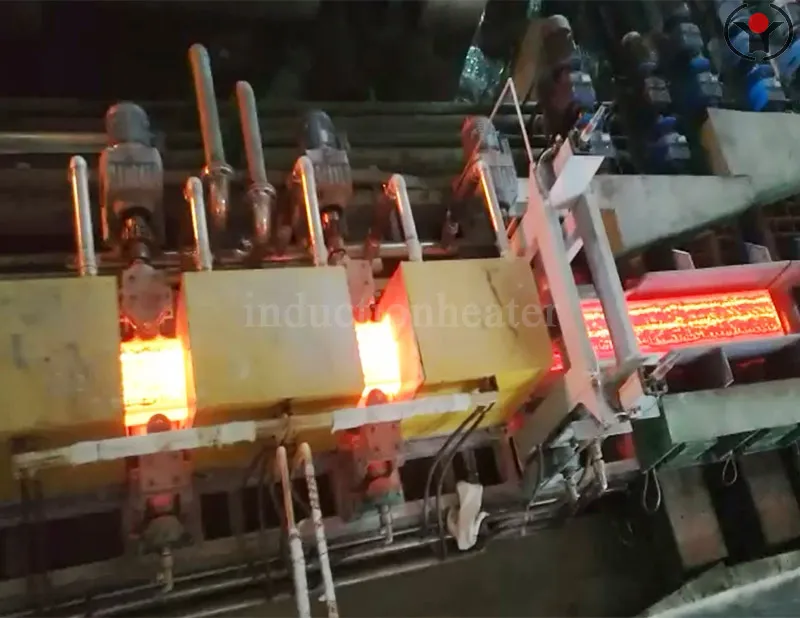

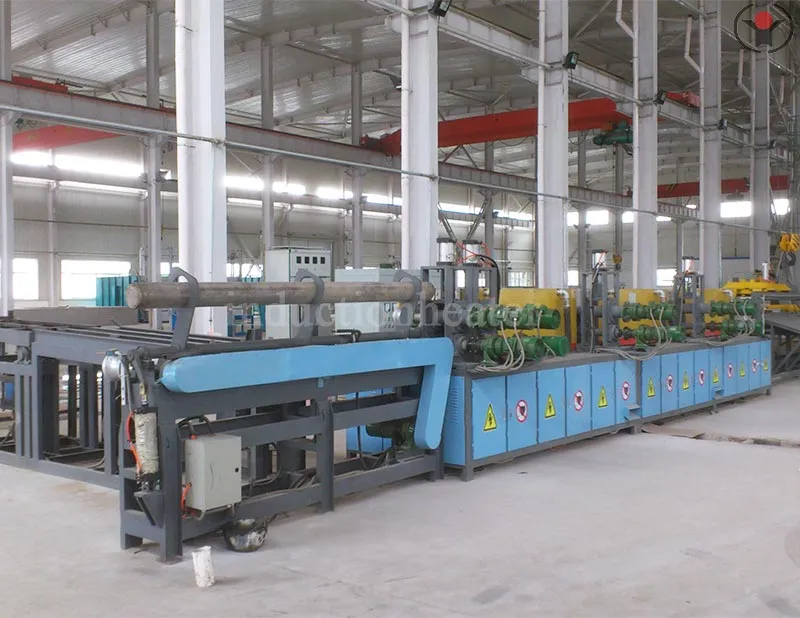

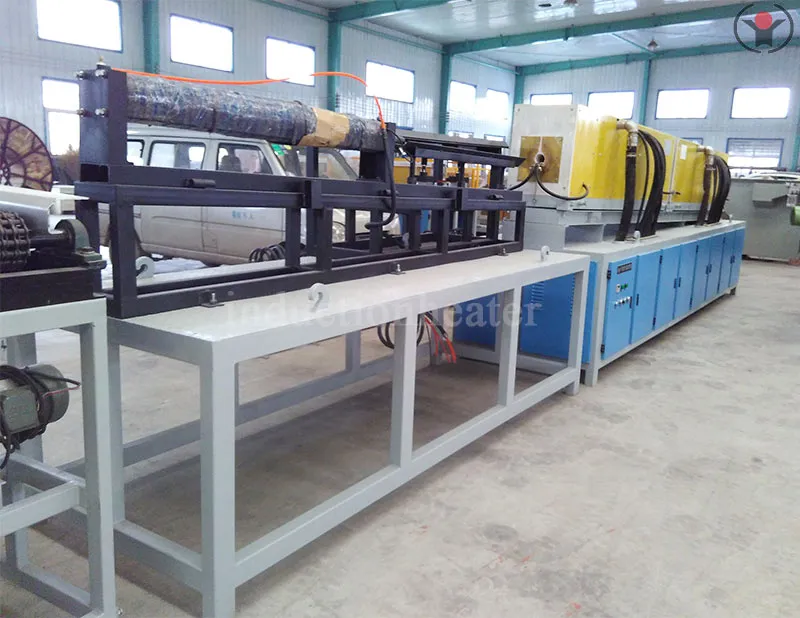

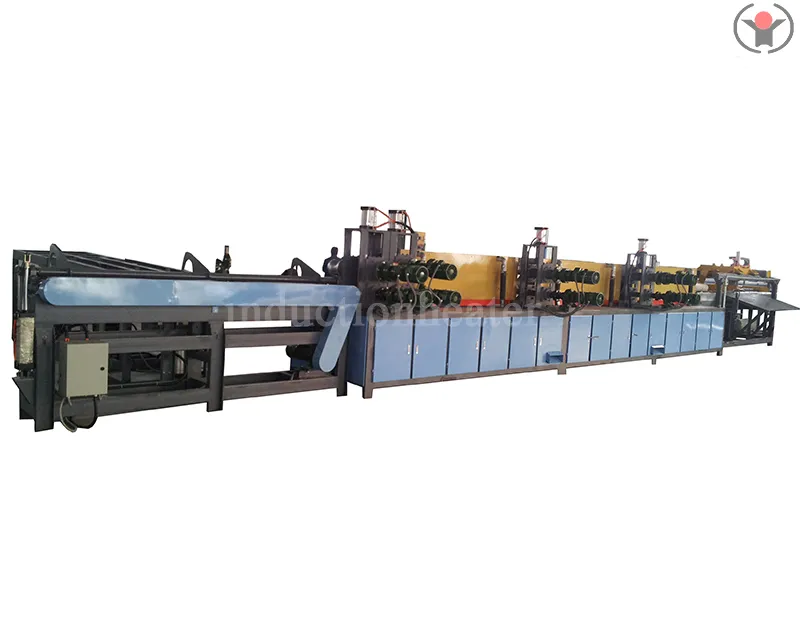

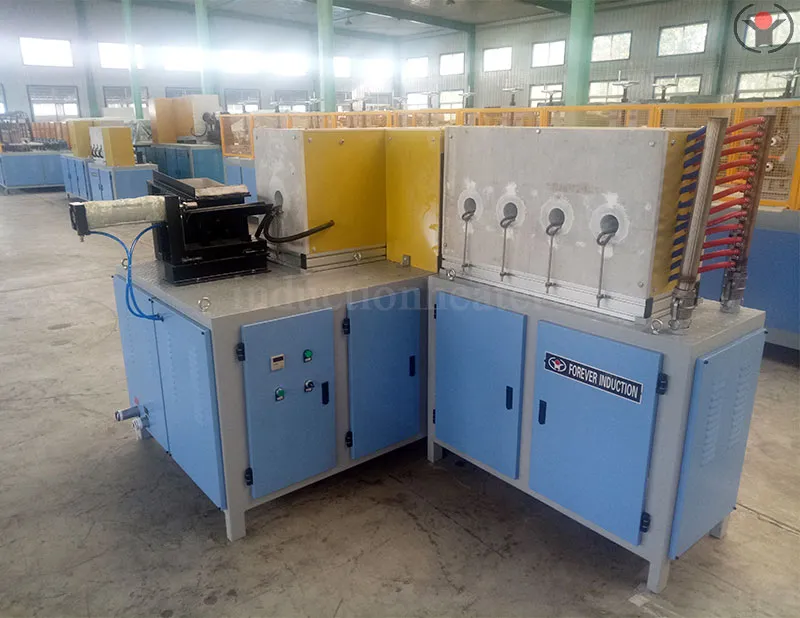

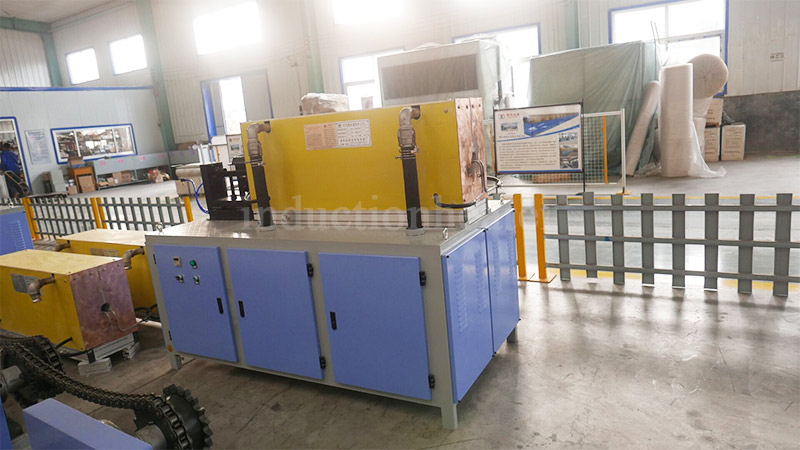

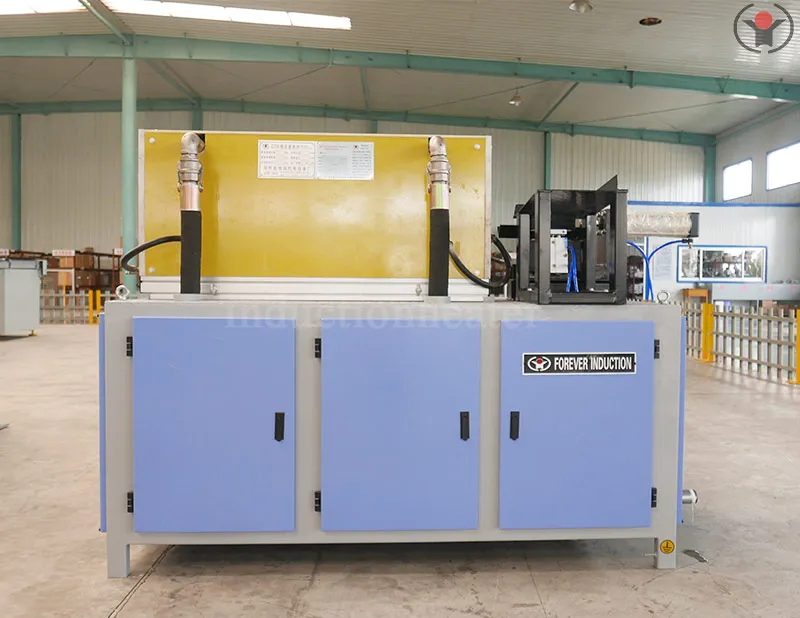

Bar induction forging heating furnace

The bar induction forging heating furnace is widely used for forging heating, mainly for the heat transfer, temperature compensation, quenching and cutting of bar materials, round steel, square steel, and steel plates, online heating, local heating, online forging of metal materials (such as precision forging of gears, half shaft connecting rods, bearings, etc.), extrusion, hot rolling, pre shearing heating, spray heating, hot assembly, as well as overall quenching, annealing, tempering of metal materials.

The medium frequency induction heating used in the bar induction forging heating furnace has many advantages such as fast heating speed, less oxidation, accurate temperature control, good production conditions, and stable and reliable operation. It has been widely used in the large-scale production of automotive forgings.

The main components of the bar induction forging heating furnace are:

(1) IGBT medium frequency induction heating power supply

(2) Compensation capacitor and forging furnace workbench

(3) Induction coil, guide rail and outer cover

(4) Pneumatic feeding mechanism for bar hot forging equipment

1. The complete set of bar forging heating furnace consists of only one furnace body, occupying a small area

2. Mechatronics design, intermediate frequency voltage double voltage output, wide output slot and copper bar with small gap design, reducing power loss in the circuit and saving up to 10% -15% electricity

3. The induction heating furnace body adopts double insulation treatment, which increases the service life and reliability by three times. The thin furnace lining design reduces space leakage and achieves high energy conversion efficiency, achieving the goal of energy conservation and consumption reduction.

4. Fast heating speed, high production efficiency, less oxidation and decarburization, saving material and forging die costs

5. Superior working environment, improved worker working environment and company image, pollution-free, low energy consumption

6. The bar forging heating electric furnace heats uniformly, with a small temperature difference between the core and surface, and high temperature control accuracy.
